RP-7 Preamplifier

With a perfect blend of tube smoothness and an almost unbelievable level of detail and transparency, the new Rogue Audio RP-7 Preamplifier essentially redefines what a reference level tube preamplifier can achieve.

The RP-7 is Rogue Audio's first balanced preamplifier designed on the cutting-edge RP-X hardware and software platform and every aspect of the RP-7 design is aimed at maintaining near perfect signal integrity. Beyond the computer-optimized circuit topology, all of the capacitors, resistors, and other critical parts are of ultra-high quality assuring the highest sonic integrity. The sophisticated electrical design is based on pure class A tube amplification with MOSFET output buffering to provide a huge drive along with a super low output impedance.

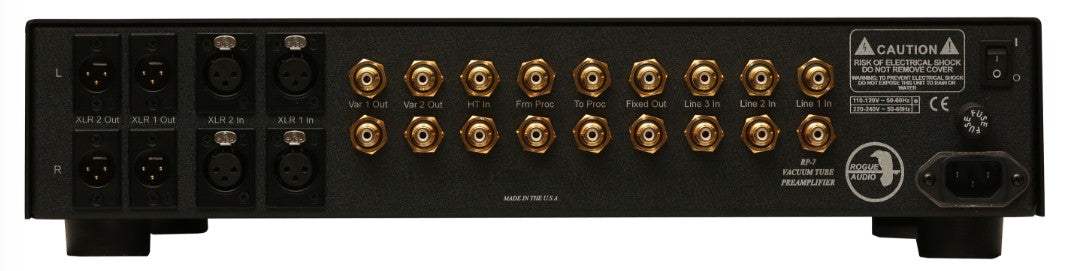

Beyond the excellent sound, the feature-rich RP-7 provides all of the functions demanded of a luxury hi-end preamp. Included are a home theater bypass, processor loop, mono button, defeatable display, slow start circuitry, and a host of other features. A full-function remote provides additional convenience. Two pairs of XLR balanced inputs and three pairs of RCA line-level inputs allow for numerous source components while two pairs of XLR balanced outputs along with two pairs of RCA variable outputs facilitate a wide range of output connectivity. Also included is a high-power tube-based headphone amplifier capable of driving even the most difficult headphones.

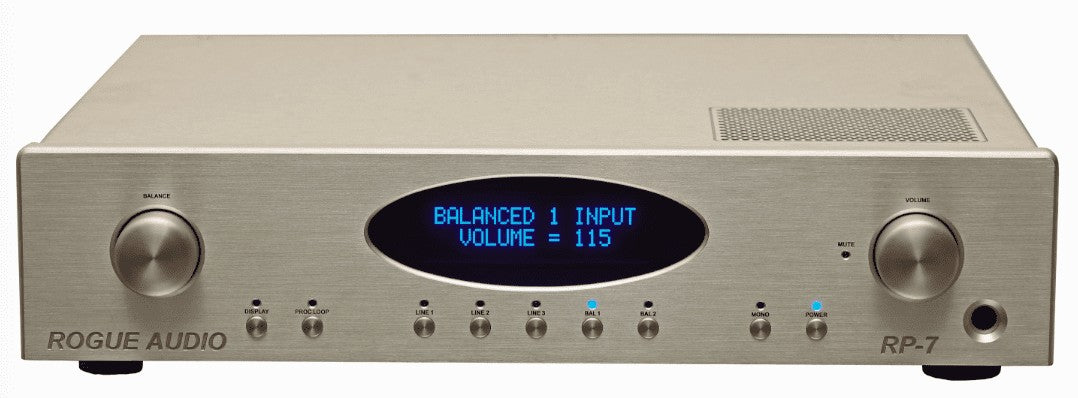

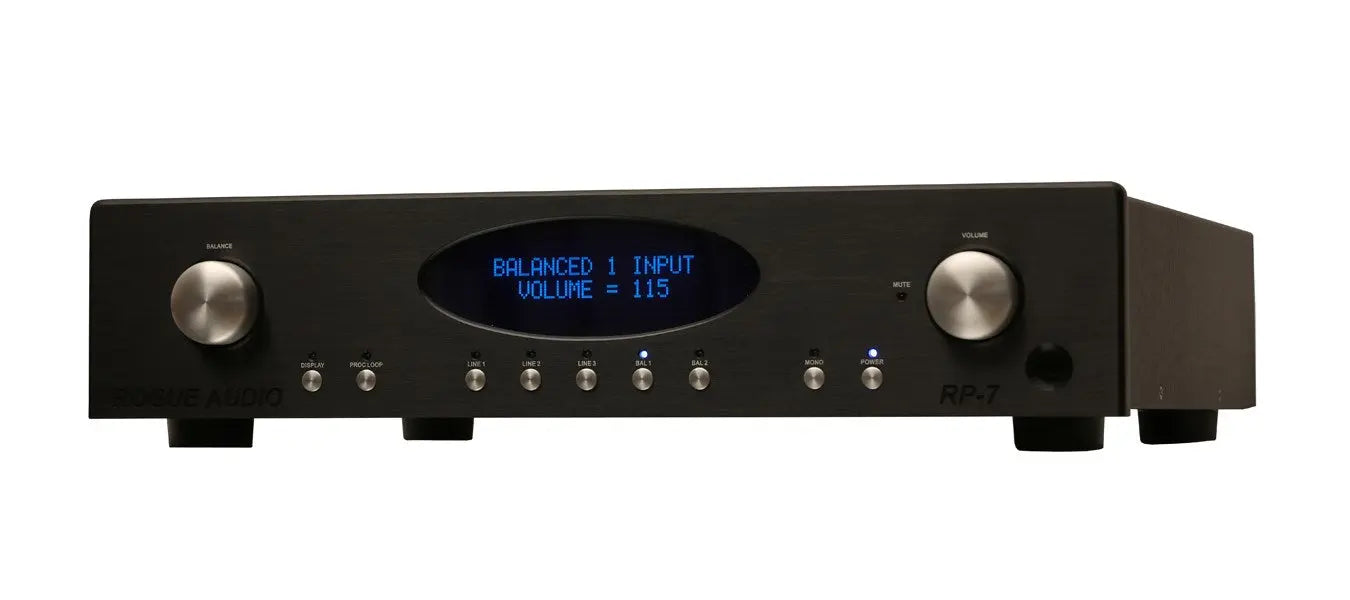

The attractive industrial design includes an easy-to-read OLED display that further enhances the preamp's sleek and elegant appearance. The display provides all relevant information in large easy to read azure tinted characters. The ultra-high quality tactile buttons and knobs further add to the exclusive feel of the RP-7.

Specs

• Tube complement: 4 x 12AU7/ECC82 tubes
• Frequency response: 1Hz – 100KHz +/- 1 dB
• THD: <0.1%
• Gain line stage: 14 dB (20dB XLR)
• Rated output: 1V
• Maximum output: 30V
• Output impedance: <10 Ohms
• Dimensions: 18.5 ”W X 4.5 ”H X 17” D
• Weight 30 pounds
• Shipping weight 45 pounds
• Power requirements 115/230V – 50/50Hz

Features

• Four 12AU7 tube mu-follower design
• Ten-function remote control
• OLED display (defeatable)
• Home Theater bypass/Unity gain inputs
• Three pairs of RCA line-level inputs
• Two pairs of fully balanced XLR inputs
• One pair of fixed outputs
• Two pairs of RCA variable outputs
• Two pairs of fully balanced XLR outputs
• Processor loop
• Mono button
• Heavy-duty gold plated RCA inputs
• Machined aluminum faceplate and knobs
• Tube-based high-power headphone amp
• Massive power supply
• Slow start turn on sequencing
• Auto mute at turn on/turn off
• Detachable IEC power cord
• Fully tested, burned in, and auditioned
• 3-year limited warranty (6 months on tubes)
• Proudly handcrafted in the USA!

Please contact me with any questions you may have regarding the Rogue Audio RP-7 Preamplifier.
