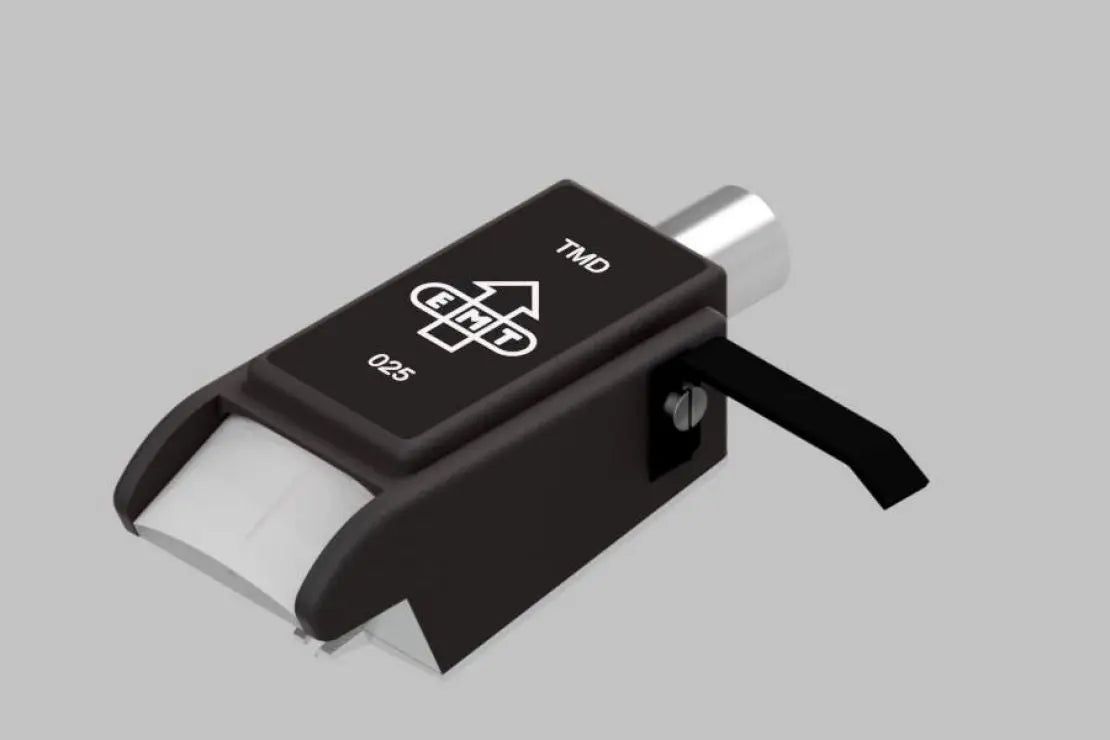

EMT Tondose Series TMD 025 Cartridge

The EMT Tondose Series TMD 025 Cartridge is a Broadcast mono cartridge for microgroove.

The new TONDOSE features the well-established EMT generator, integrated into a monobloc structure, milled from a solid block of magnesium. Thus both rigidity and resonance behavior has been significantly improved.

Besides the standard EMT tonearm connection, EMT offers the option INT (Ortofon A compatible) and option X (for SME standard). Furthermore, we manufacture 1/2 and 1/4 coil for lower impedance versions on request.

The TMD 025 features a spherical diamond. It is made for tracking of mono records.

Specs

• Diamond: SPH 25µm
• Cantilever: Aluminium
• Transducer: MC true mono
• Connection: EMT
• Vertical Tracking Angle: 23°
• Tracking force: 2,5g
• Output Transfer Level: 0,21mVs/cm
• Compliance: 12µm/mN
• Frequency response: 20 - 20‘000Hz
• Impedance: 24Ω
• Recommended load: 200 - 300Ω
