EMT Tondose Series TSD Novel Cartridge
Pairs well with
EMT Tondose Series TSD Novel Cartridge
Product details

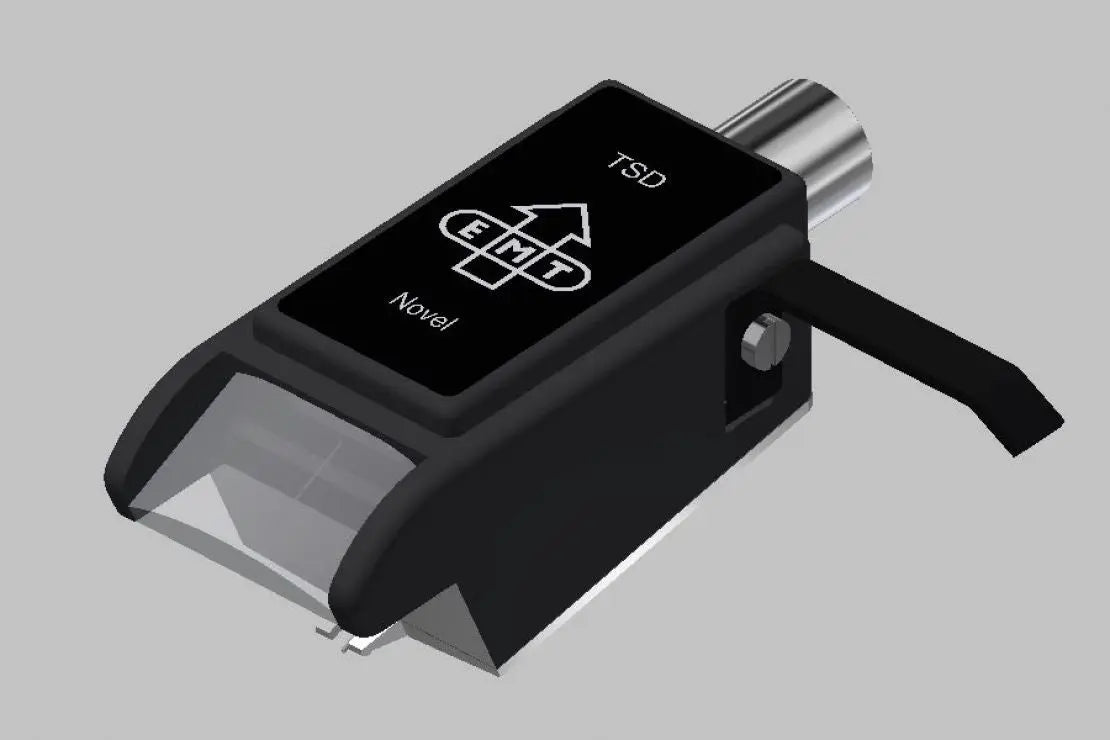

The EMT Tondose Series TSD Novel Cartridge provides an ultimate broadcast stereo cartridge with EMT multi-layer core transducer.
All EMT Novel products are equipped with the innovative EMT multi-layer core transducer with titanium/sapphire cantilever. Incredible realistic performance is achieved, while at the same time the tried and trusted EMT typical specs are respected. The generator is integrated into a monobloc structure, milled from a solid block of magnesium. Thus both rigidity and resonance behavior has been significantly improved.
Besides the standard EMT tonearm connection, EMT offers option INT (Ortofon A compatible) and option X (for SME standard). Furthermore, they manufacture 1/2 and 1/4 coil for lower impedance versions on request.
The TSD Novel features a Multi-Radius diamond shape. It is fully compatible with the previous TSD 15.
Specs
- Diamond: MR HP
- Cantilever: Titanium / Sapphire
- Transducer: EMT multi layer core technology
- Connection: EMT
- Vertical Tracking Angle: 23°
- Weight: 17.5g
- Tracking force: 2,2g
- Output Transfer Level: 0,21mVs/cm
- Compliance: 12µm/mN
- Frequency response: 20 - 25‘000Hz
- Impedance: 2x 18Ω
- Recommended load: 200 - 300Ω
