Product details

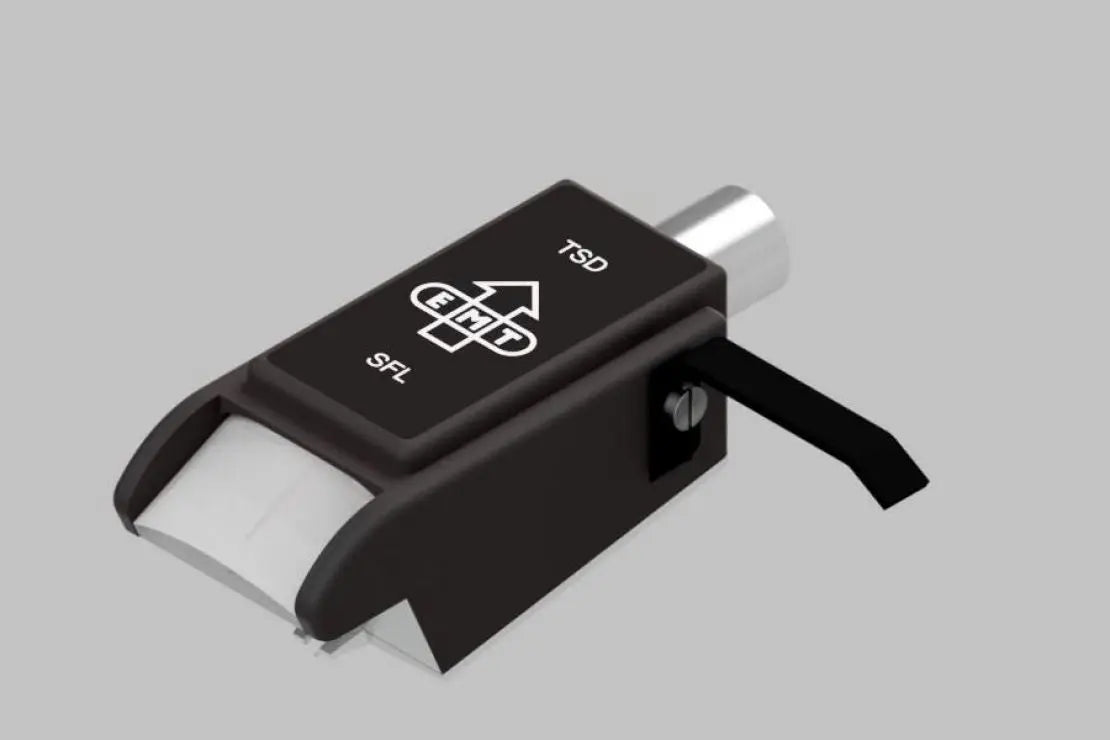

The EMT Tondose Series TSD SFL Cartridge is a Broadcast stereo cartridge, with high-resolution tracking.
The new TONDOSE features the well-established EMT generator, integrated into a monobloc structure, milled from a solid block of magnesium. Thus both rigidity and resonance behavior has been significantly improved.
Besides the standard EMT tonearm connection, EMT offers the option INT (Ortofon A compatible) and option X (for SME standard). Furthermore, they manufacture 1/2 and 1/4 coil for lower impedance versions on request.
The TSD SFL features a Super-Fineline diamond shape. It is fully compatible with the previous TSD 15.
Specs
- Diamond: SFL
- Cantilever: Aluminium
- Transducer: MC Stereo
- Connection: EMT
- Vertical Tracking Angle: 23°
- Weight: 17.5g
- Tracking force: 2,5g
- Output Transfer Level: 0,21mVs/cm
- Compliance: 12µm/mN
- Frequency response: 20 - 25‘000Hz
- Impedance: 2x 24Ω
- Recommended load: 200 - 300Ω
