SACD 10 SACD/CD Player & DAC
--In Store Only-- The reference-standard SACD 10 is crafted to be the very best using a fully Marantz designed SACDM-3 transport mechanism for maximum rejection of resonance and best sound quality possible from CD and SACD.
Pairs well with
SACD 10 SACD/CD Player & DAC
Product details
Best of the Best
From the triple-layer aluminum chassis with copper shielding to entirely original multi-layer PCBs, isolated sub-enclosures, and HDAM module, SACD 10 is the product of decades of expertise in audio engineering, setting a new benchmark with meticulous construction, state-of-the art technologies, and remarkable design. Made for the ultimate CD and SACD enthusiast, SACD 10 is engineered with updated Marantz Musical Mastering and a next generation HDAM module for impeccably detailed audio reproduction.
Highest Resolution
SACD 10 supports digital sources via USB-A and USB-B DAC, plus DSD 256 and PCM 384 / 32 support. Connectivity options also include coaxial and optical digital outputs and inputs, and fixed level XLR and RCA analog outputs.

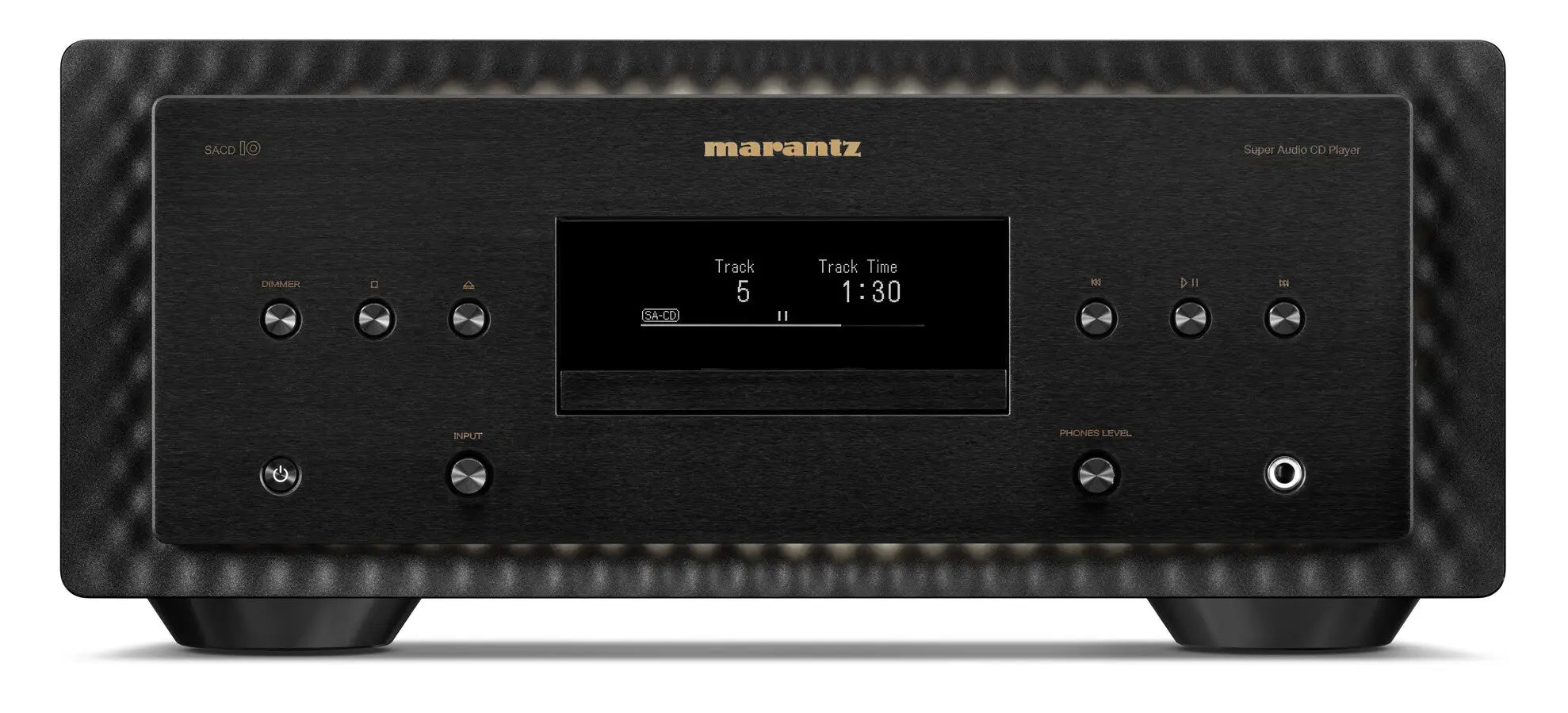

Stunning Industrial Design

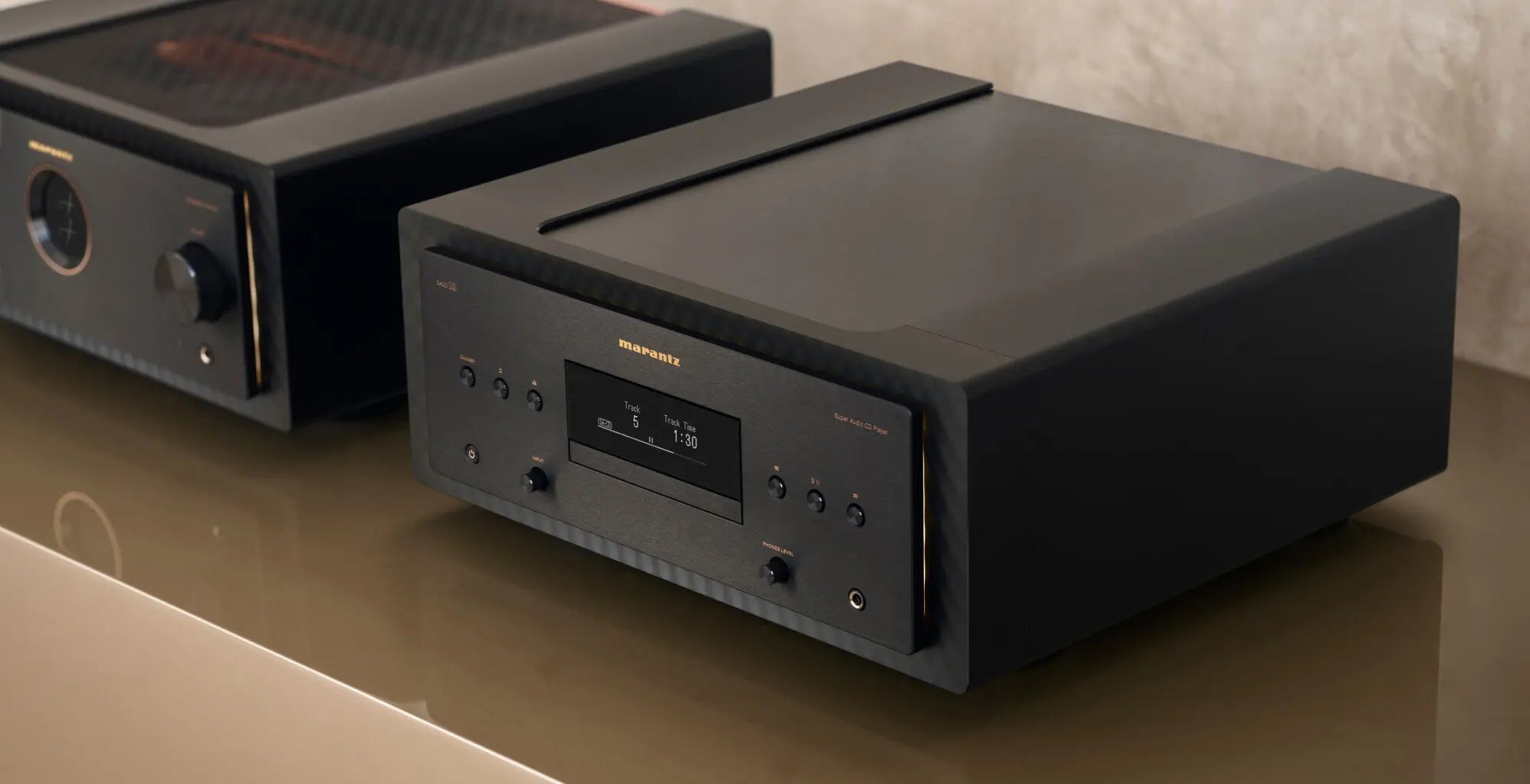

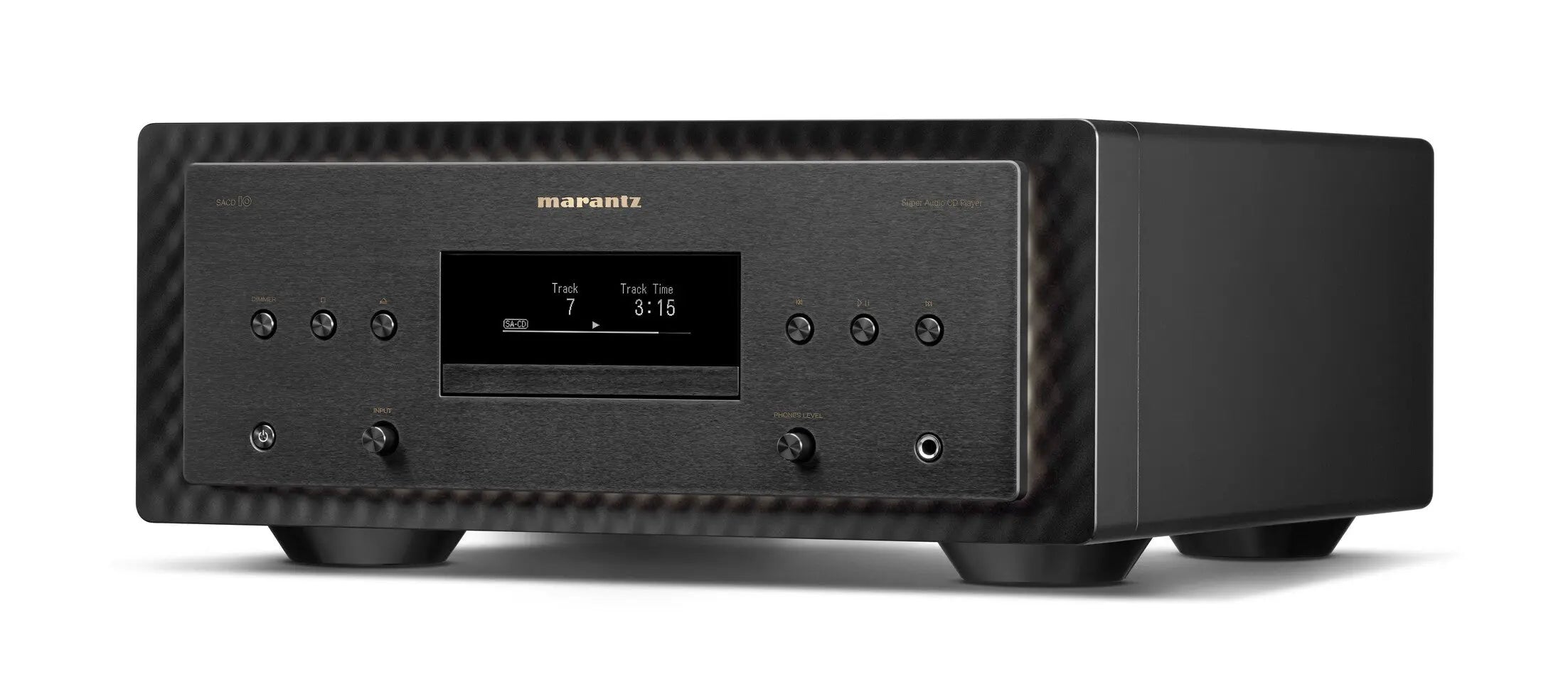

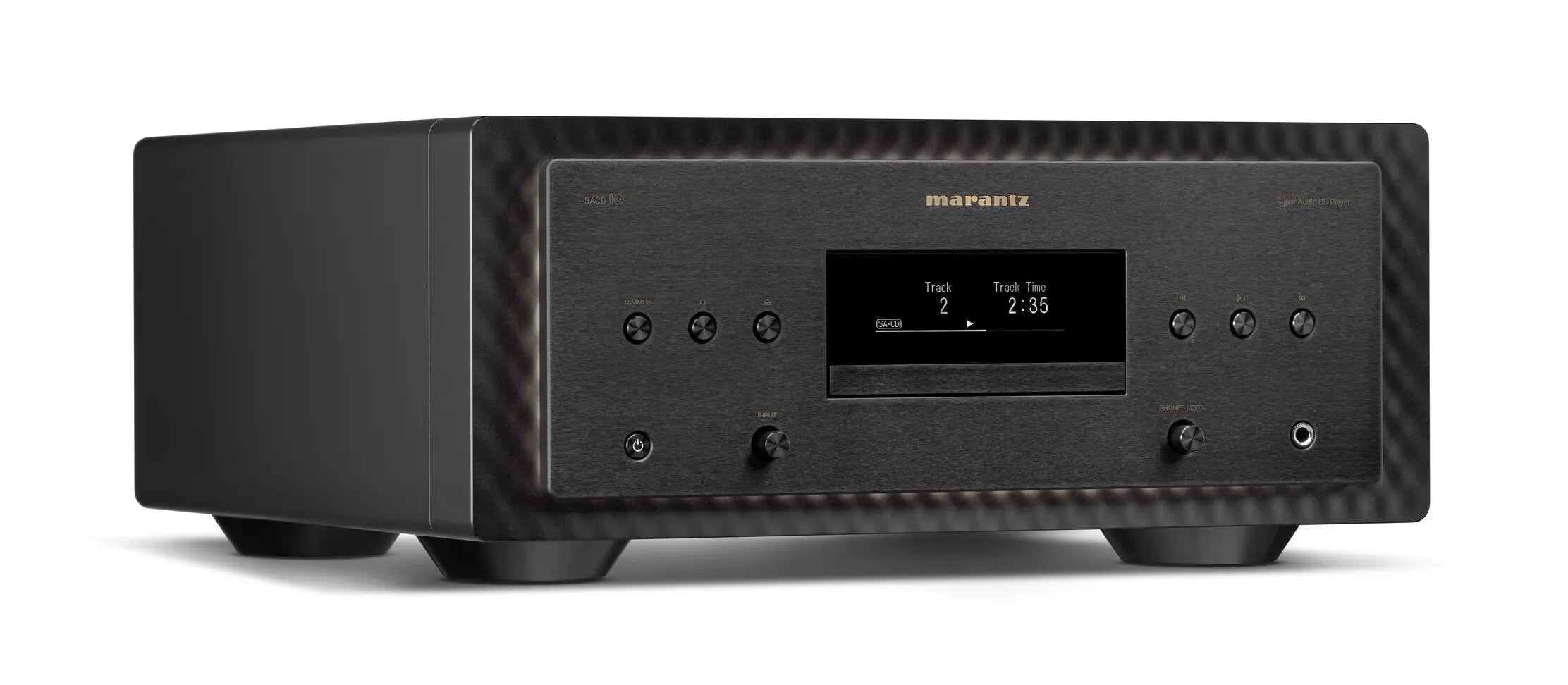

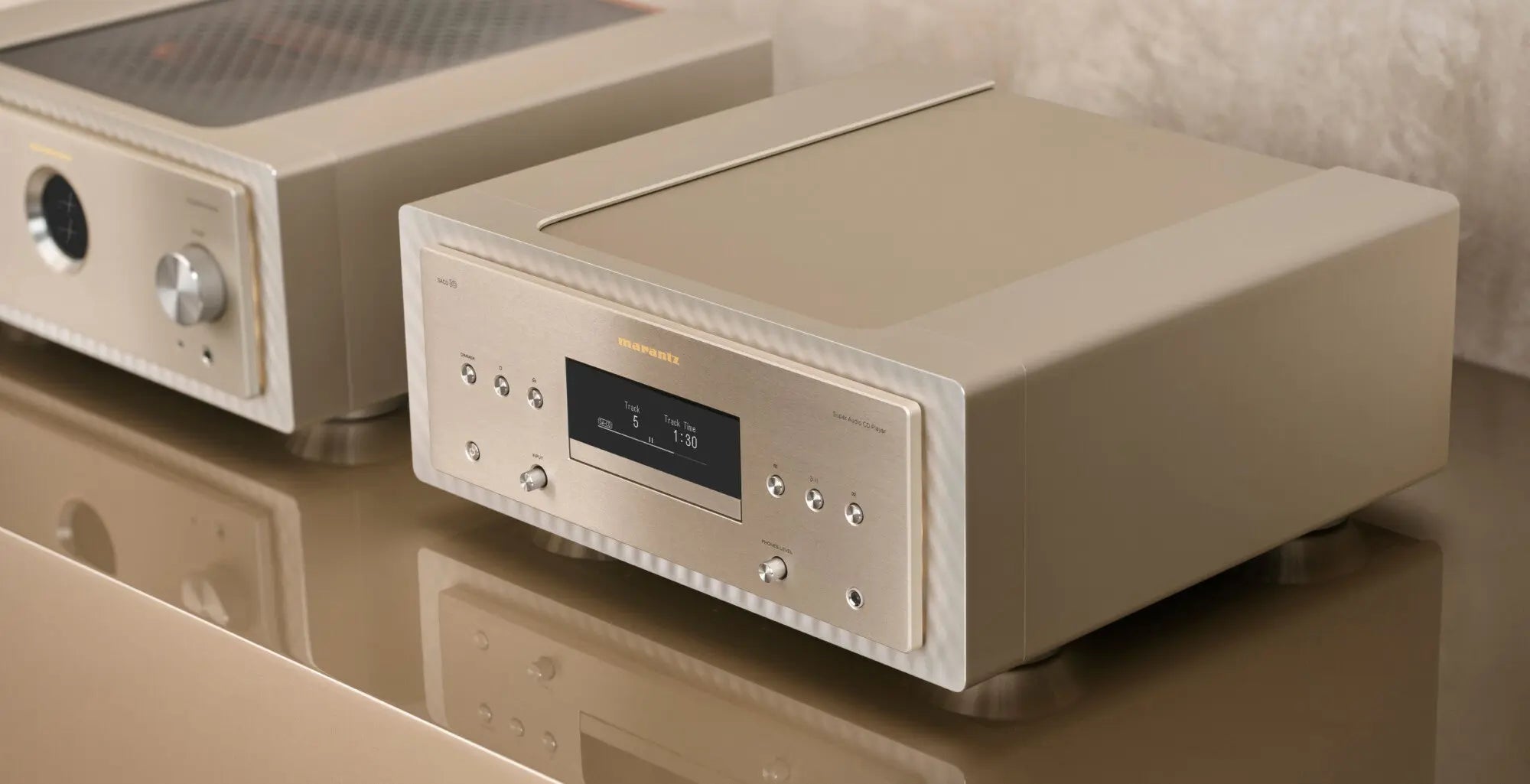

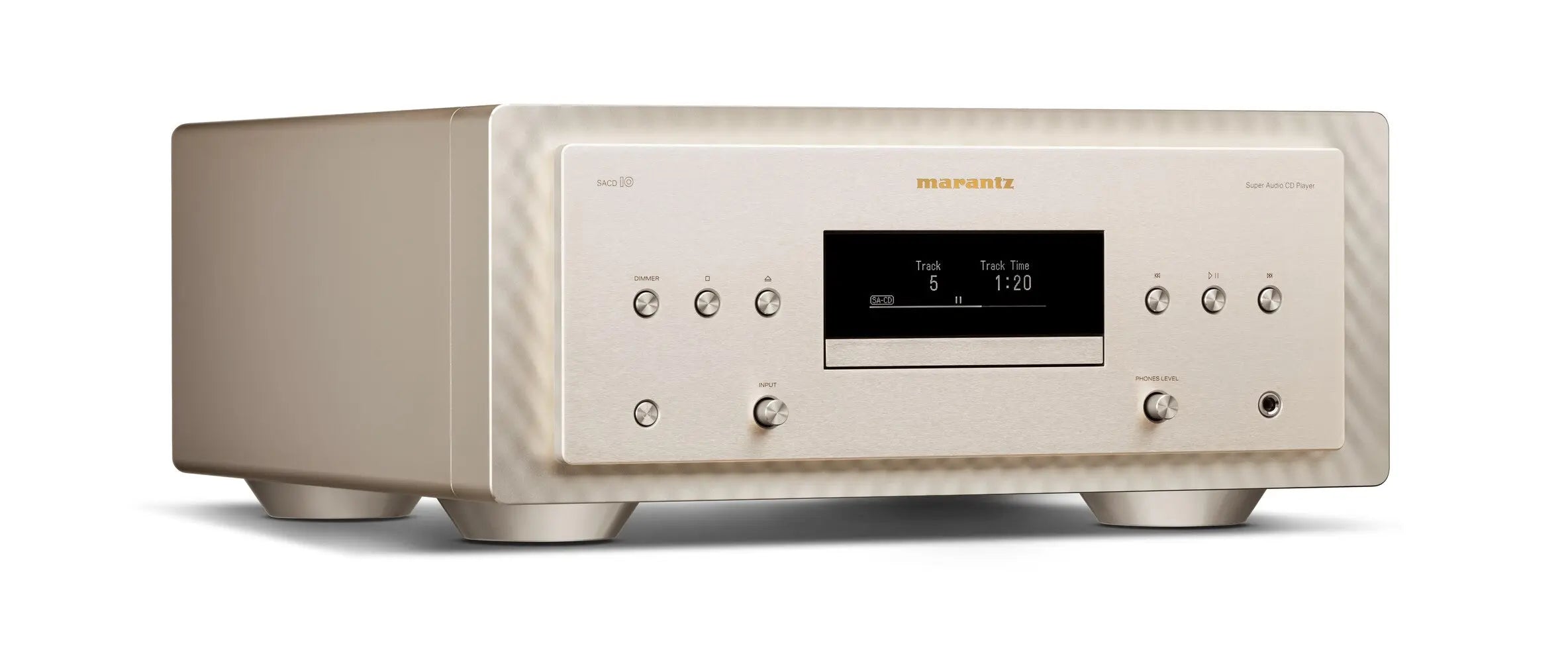

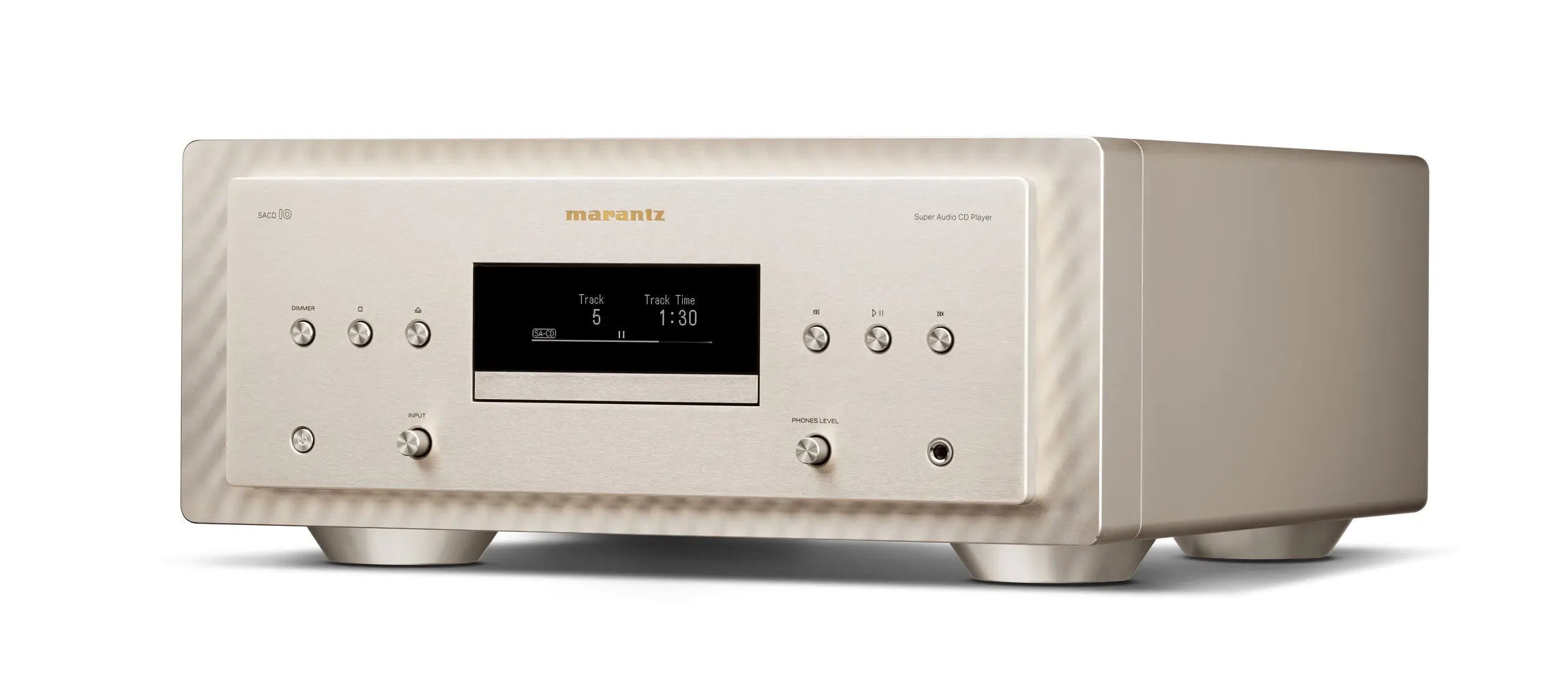

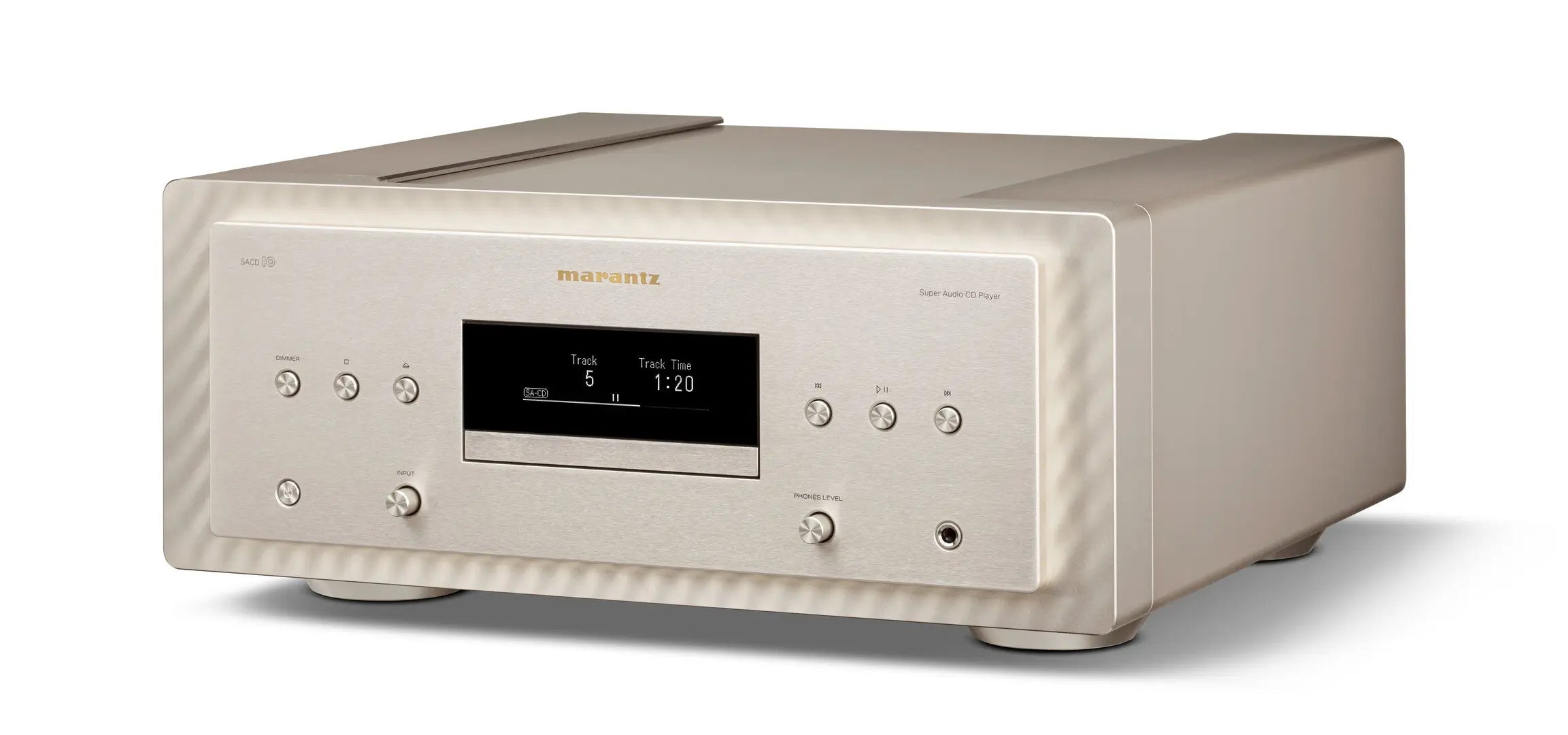

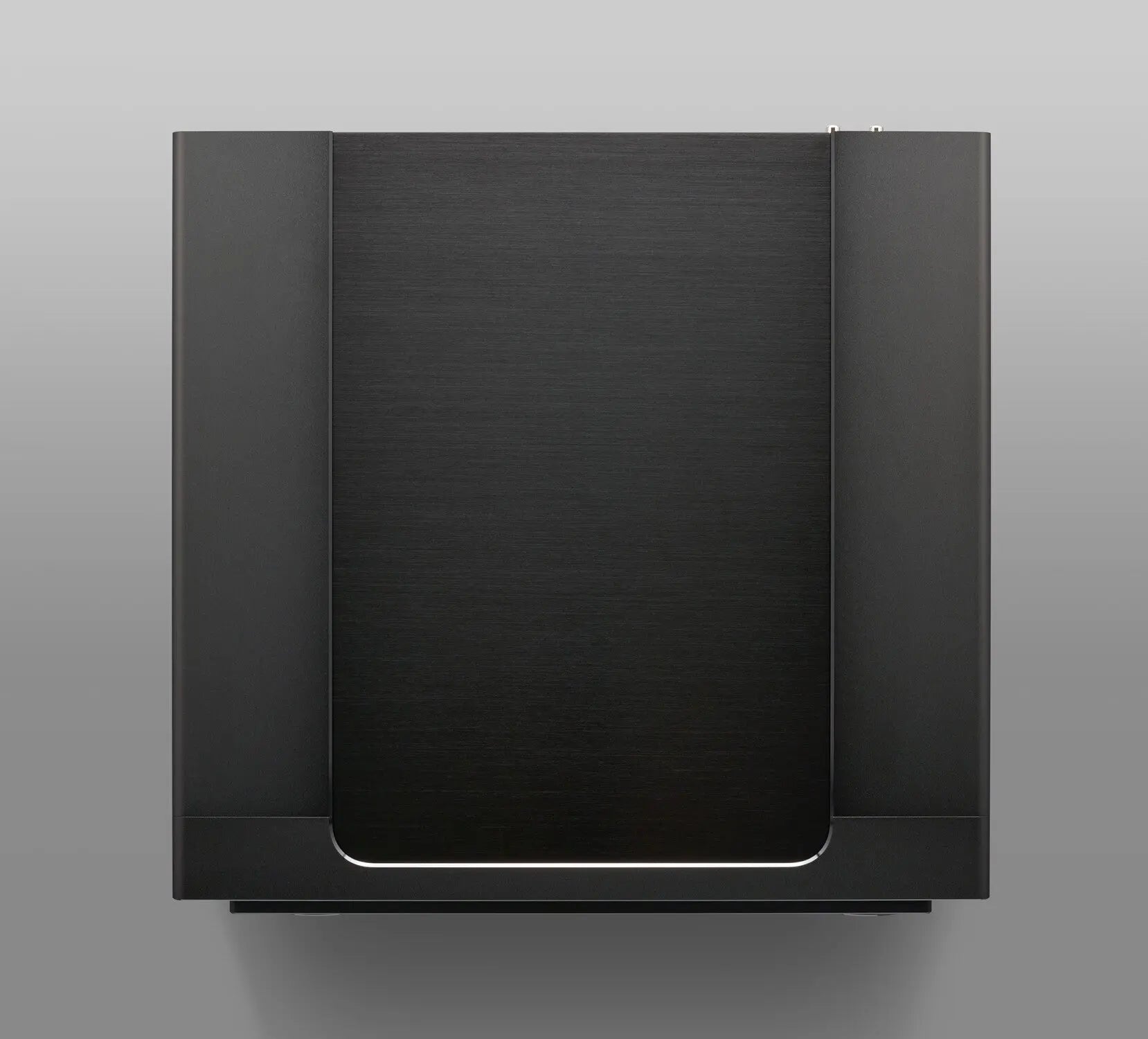

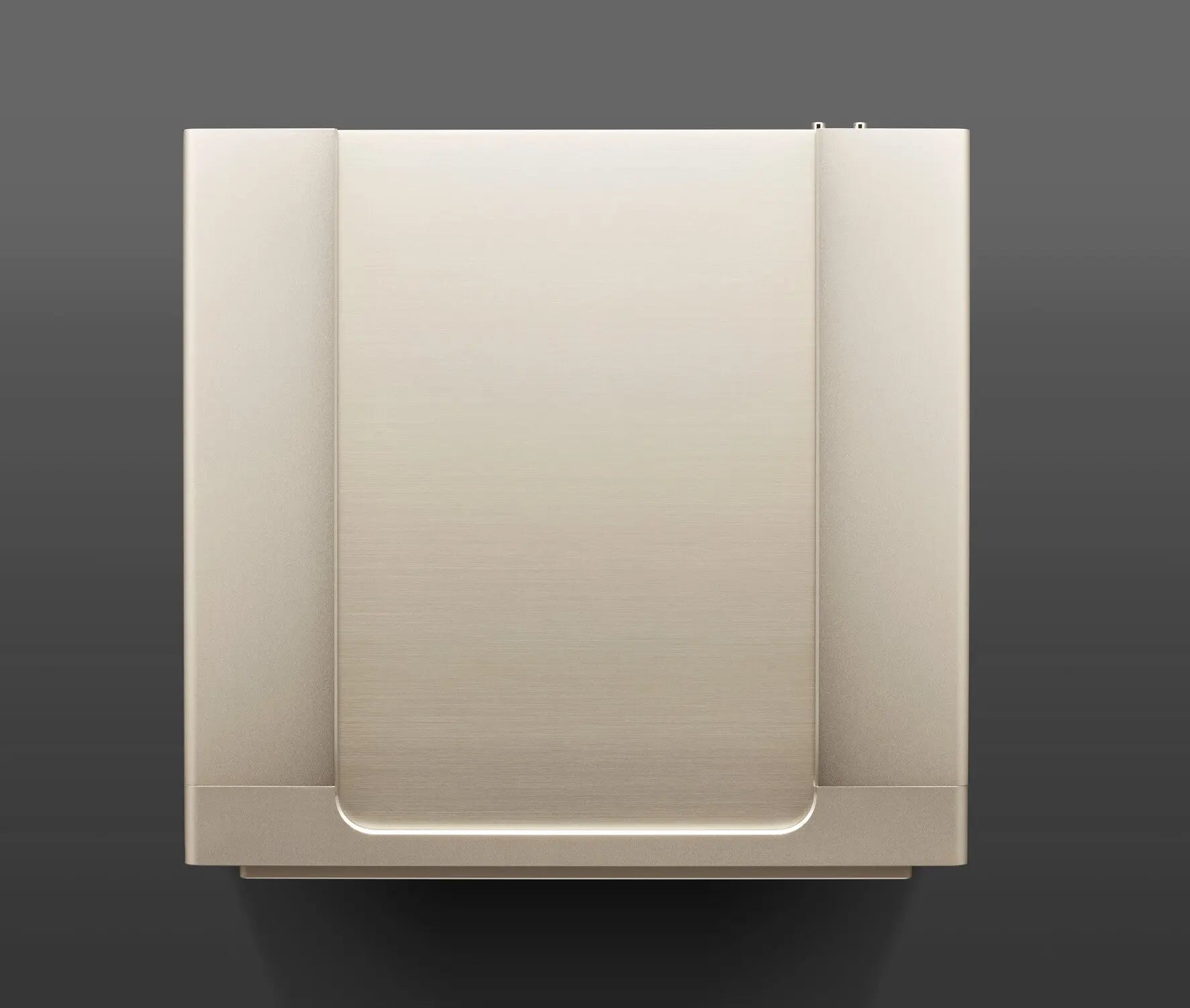

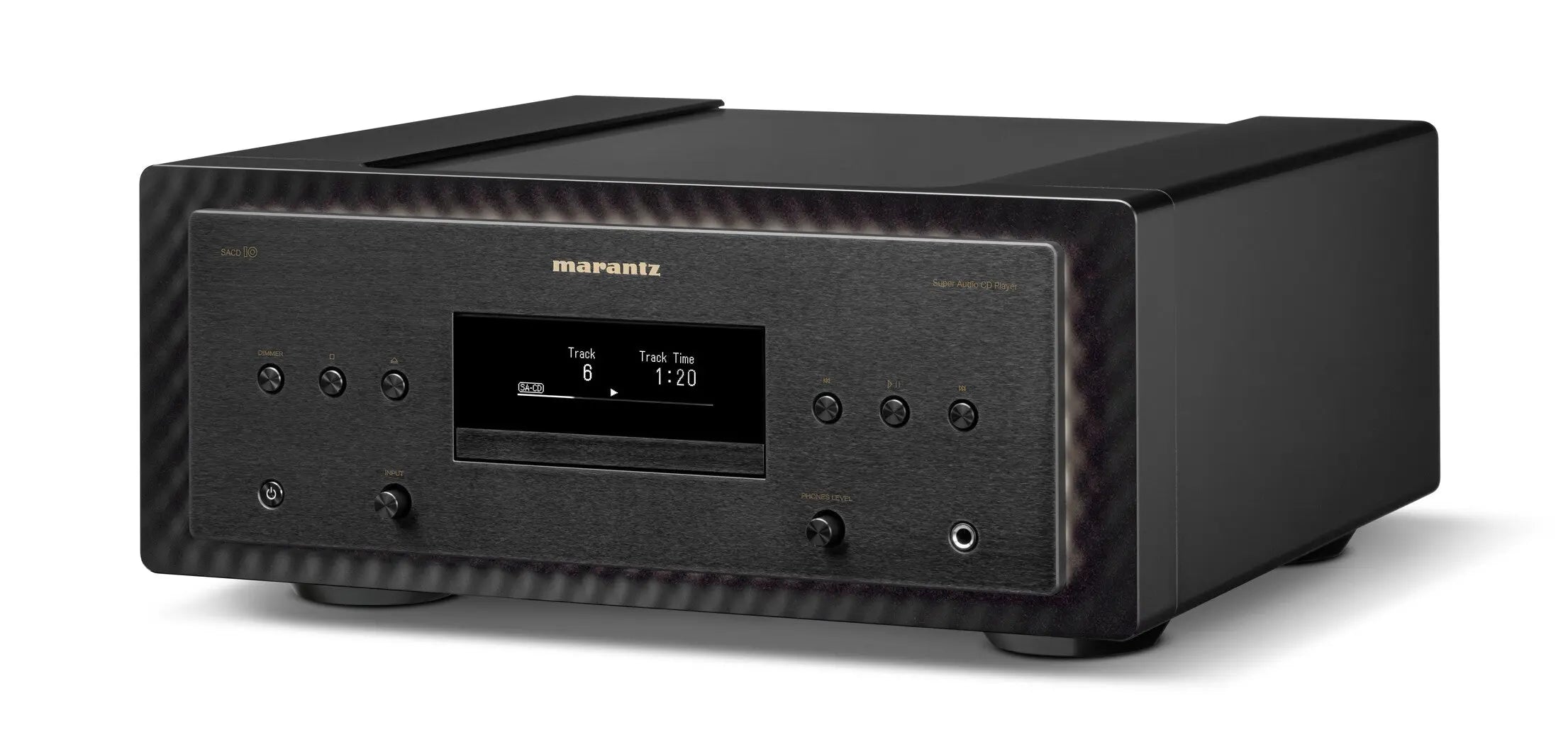

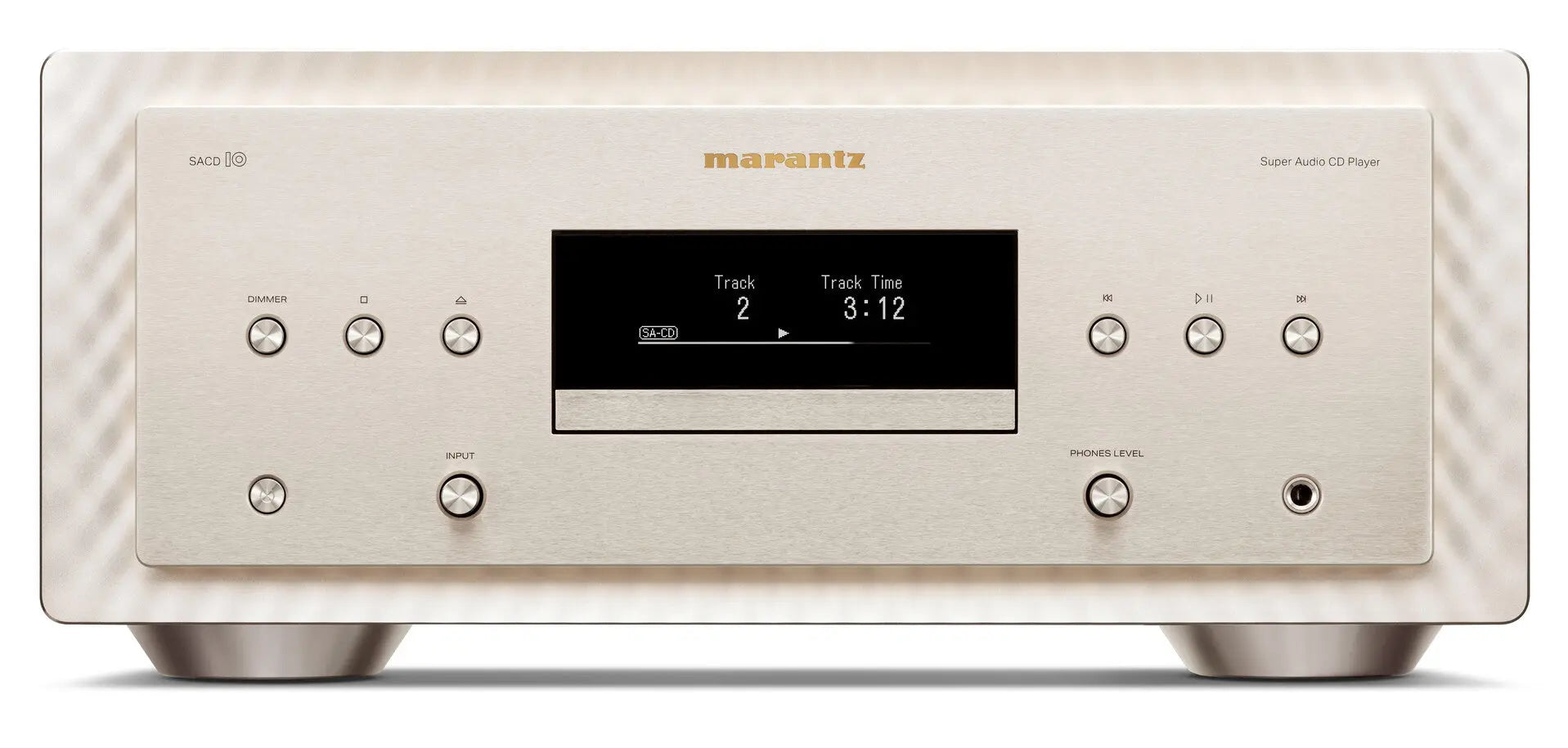

With a brushed aluminum control surface, spun finish details, a thick-section aluminum structure, copper-plated, triple-layered chassis, , SACD 10 is in a class of its own. Available in two colorways, Marantz Black and Marantz Champagne to complement any setting.
Specs and FAQs
Performance
Frequency Response SACD: 2Hz–50kHz (-3dB) CD: 2Hz–20kHz (±1.0dB) Harmonic distortion SACD: 0.0004% CD: 0.0015% S/N SACD: 118dB CD: 116dB Dynamic range SACD: 112dB CD: 98dB Line Output Leve UNBALANCED : 2.0Vrms BALANCED : 4.0Vrms Headphone Output Level 130mW / 32 ohms

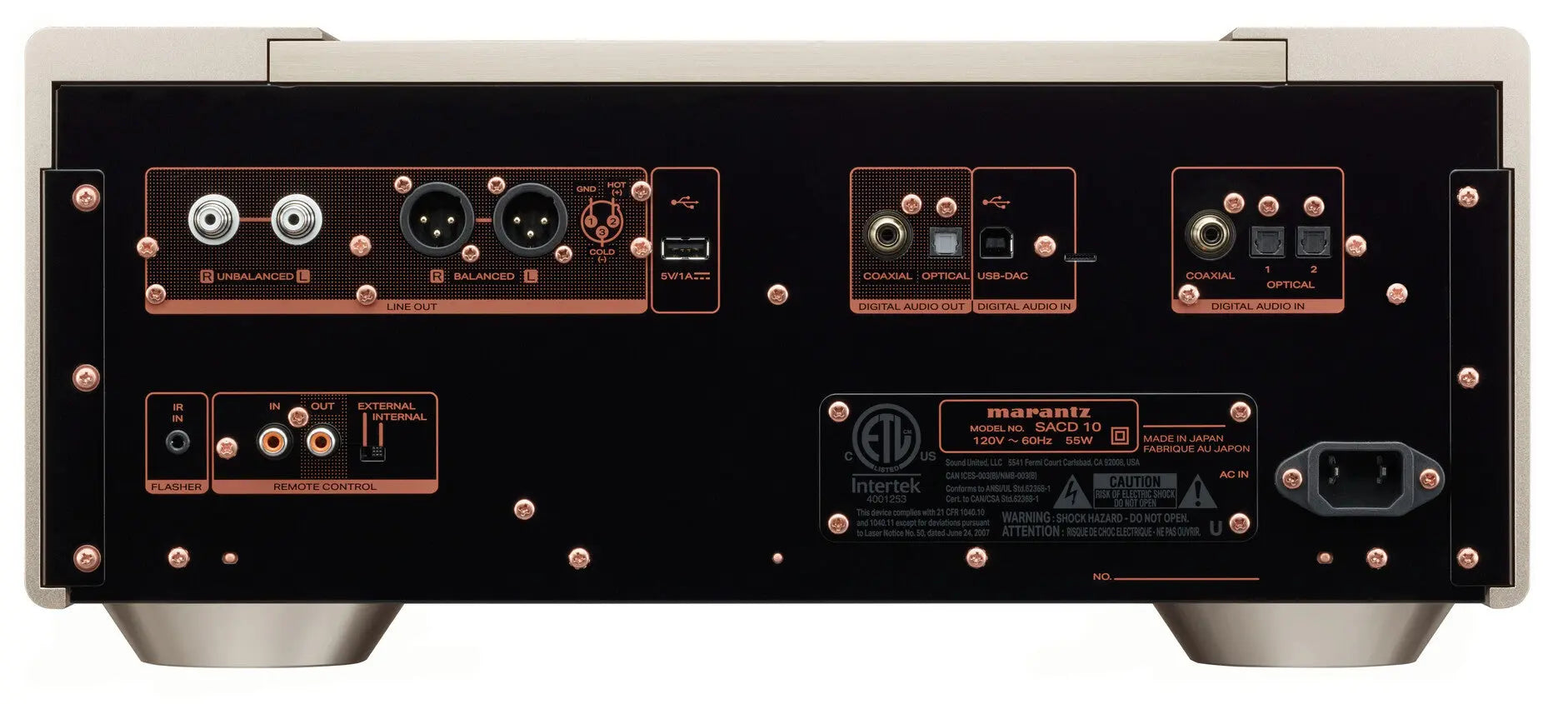

Inputs and Outputs
Fixed Analog Output (RCA) Cinch × 1 Thick nickel plated Maching copper L/R independent terminals Fixed Balanced XLR Output 1 Optical input / output (Maximum Support) 2/1 4.1 kHz - 192 kHz Coaxial input / output (Maximum Support) 2/1 4.1 kHz - 192 kHz Headphone Output Yes (φ6.3 x 1)
Weight and Dims
Unit (W × H × D mm) 440 × 192 × 442 , weight 33.0kg
